Quick Details

  • Fuel Type: Diesel
  • Emission Standard: Euro 4
  • Condition: New
  • Transmission Type: Manual
  • Dimensions (L x W x H) (mm): 7580*2200*2400
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: ISUZU
  • Model Number: VLD5070
  • Chassis brand: I SUZU
  • Product name: Road Wrecker Truck
  • Driving type: 4x2
  • Certificate: CCC ISO SGS BV
  • Tire: 7.50R16
  • Other name: Popular Wrecker Towing Truck

Packaging & Delivery

Packaging Details Nude, wax polished
Delivery Time 30 Working days
Product Description



I. Product Description

Manufacturer: Hubei Veldlion Machinery Co.,Ltd.

Wrecker truck, full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck.

Wrecker truck basically is refitted from  the loading goods second class chassis, according to the wrecker truck's structure, it can be divided into towing, loading, lifting, rescue (single arm type and arms type) wrecker truck. It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.



II. Wrecker Truck Specification

Type

VLD5071TQZHP

Specification

Dimension


L(mm)

7580

W(mm)

2200

H(mm)

2400

Chassis model

NKR77PLNACJAKY

GVW(k)

7300

Curb weight(kg)

4510

Wheel track(front/rear)

1504/1525

Overhang(front/rear)

1015/2330

Engine model

4KH1-TC

Engine power

96KW

Tyer

7.50-15

Max speed(km/h)

100

Major specification

Max. lifing mass(kg)

1600

Max. lifting mass fully extended(kg)

1200

Max. effective length(mm)

1705

Extension stroke(mm)

1200

Underlift DipAngle range(0)

-8~10

Winch

number

1

rating pulling force(kn)

40

length of cable rope(m)

26

Diameter of cable rope(mm)

12

Platform organization

platform size L*W(mm)

5450*2400

Min Angle(Folded)(°)

8

Max platform load bearing quality(kg)

3000


Remark
1. Drive model:4x2,4x4,6x4,6x6,8x4;
2. Chassis Brand:Dongfeng, North Benz, ISUZU, JAC, JMC,FAW, Foton, Sinotruk, etc;
3. Engine:Euro2, Euro3 and Euro 4 emission standard with different horsepower;
4. Left hand drive /Right hand drive with optional.

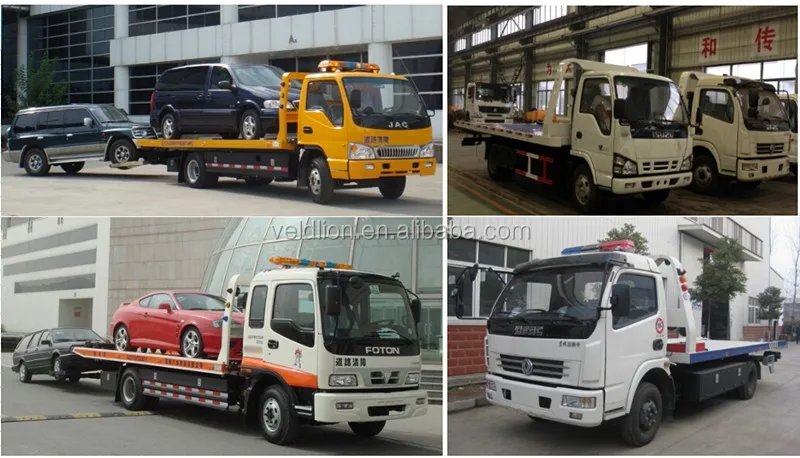

Truck Images









Company Information

 III. Company Introduce

            Hubei Veldlion Machinery Co., Ltd, which is appointed by the ministry of industry and information technology of china, is a big manufacturer of special trucks. It has solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C certification(China compulsory certification) and other certifications that export needed.

           Our company can design and produce many kinds of special trucks accurately as your request. Also own independent export right, with a mount of clients overseas, such as the u.N., Sudan, Nigeria, North america, West africa, Congo, Vietnam, Ghana, Kazakhstan etc. We strives for the survival by the quality and credit, it is the guarantee of our success.



Our Services

 IV. Our Advantages

Why choose us?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material, the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3C (China Compulsory Certification), with SGS, BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, such as Dongfeng, Foton, Sinotruck, Shacman, Iveco, Faw, Hino, Camc, North-benz, ect.

Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed. And for the stock, we can delivery it immediately.

Our services
1. We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2. Free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.



Packaging & Shipping



V. Packaging&Shipping





VI. Contact us

Atten:Ms Julia He
Mobile:0086-15927026165
www.veldlion.com
