Quick Details

  • Condition: New
  • Type: Other
  • Fuel: Diesel
  • Gear Box: Manual
  • Made In: China
  • Steering: Left
  • Drive: FWD
  • Brand Name: Sinotruk
  • Place of Origin: Hebei, China (Mainland)
  • Model: heavy duty truck
  • Year: 2017
  • Month: 9
  • Dimension: 7090X2390X2790 mm
  • Power: 336hp
  • Rated Loading Capacity: 11650kg
  • Gross Vehicle Weight: 25000kg
  • Color: Optional

Packaging & Delivery

Packaging Details nude with wax, large size transported by RO-RO ship or Bulk ship,small size can be put into a 20GP,40GP or 40HQ.
Delivery Time 30 working days

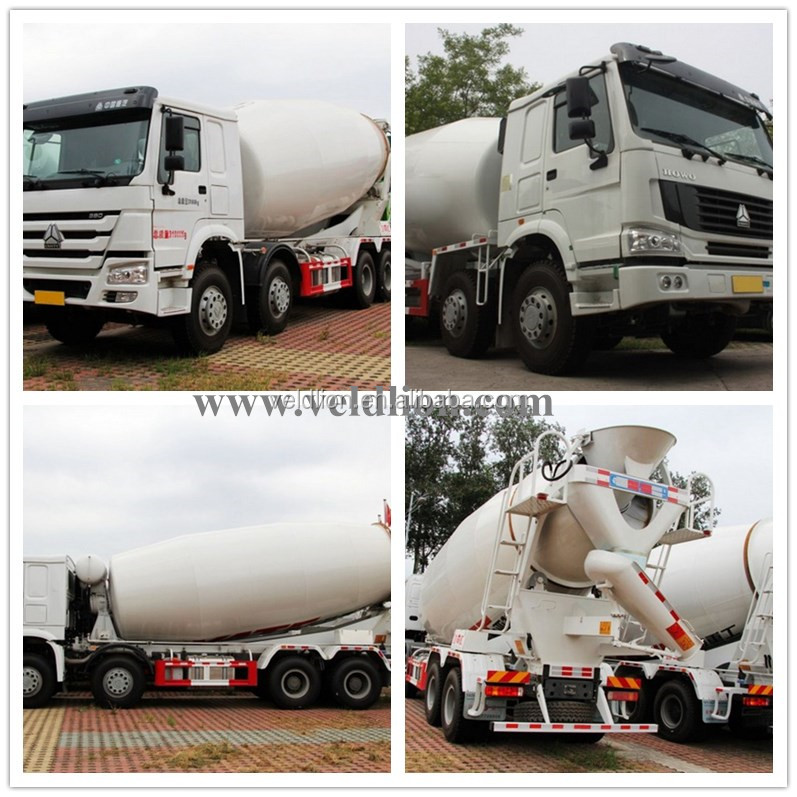

Sinotruk HOWO 6*4 Concrete Cement Mixer Truck



--------------------------------------------------------------



*Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
*Services--Obtaining a satisfied smile!*




Cement mixer truck has three type: wet material type, material type and semidry material type according to concrete water content in the mixer truck shipment to points. It can be shipped by mixing plant (station) production of concrete or mixed according to the ratio of aggregate (sand and gravel), cement and water. During transport and segregation, it keeps slowly stirring wet material constantly to prevent the initial setting of concrete.





» I.Product Describution:


Manufacturer: Hubei Veldlion Machinery Co.,Ltd.


Main Feature of the mixer truck:


1.Control system:
Adopt three-point control mode, by control bar on both rear sides and in-cab device to control the drum easily and conveniently.

2.Hydraulic driving system :
Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure ,excellent performance, to meet customers' various special need.

3.Water supply system:
Have various volume water tanker, can feed the water mixing and cleaning, enlarged water pipe and various feeding solution. Can convenient customer, water feeding solution can use air pressure ,reducer pump ,electronic pump, etc, can meet different requirement.

4.Blade anti-wear protection:
Modified logarithmic helical curve type of blade .In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle life, but also synchronizing the wear of drum and blades.

5.Blade process:
Blades are made of special cold-forming pressing molder, welded with drum body by new welding process without obvious trance.

6.Humanization design:
Lighting device: human-oriented large power tail working lamp at rear part, not only meeting special requirement for night working ,but also ensuring safety of personnel and vehicle.
Step area: adopt pressed steel and attractive appearance, reasonable handrail ensuring safety.
Self-locking in cab, to prevent from mistake operation and ensure security.
Smart equipment: remote operation, water metering, tank mouth seal etc.




» II. Mixer Truck Specification :

The Parameters Of Chassis
ChassisZZ1257
CabHW76 Flat cab
Drive type6x4,RHD
Vehicle Main DimensionsL×W×H(mm)9040x2496x3850mm
Wheel base(front/rear) (mm)3800+1400
Min. turning circle (m)17
Min. ground clearance (mm)314
Max. speed (km/h)77
Approach/Departure angle20/18
Weight in KGSComplete kerb mass (kg)13220
G.V.W.(kg)25000
EngineModelWD615.69
Horse Power(HP)336 HP
Emission StandardEuro II
GearboxHW19710SINOTRUK 10 speed manual type transmission
ClutchSingle-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance.
Tire12.00R20 radial tires
SteeringZF8118 power steering, hydraulic steering with power assistance.
Front axle1 x HF9, 9 ton axle load
Rear axle2 x HC16 ,2x16ton axle load
Color and printingWhite
Hydraulic SystemItaly TOP/PMP reduction gears/ Eaton motor/Eaton pump
Mixing Drum
Geometric Volume13.5 M³Mixing Volume8 M³
Stuffing Volume58.70%Feeding Speed(M³/min)≥3
Discharging Speed(M³/min)≤2Discharge Residue(%)≤0.2
Slump Scope(mm)50-220Drum Speed(Min)0-18
Obliquity12°Drum Materialscarbon steel
» III.Our Advantages

Why choose us?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity

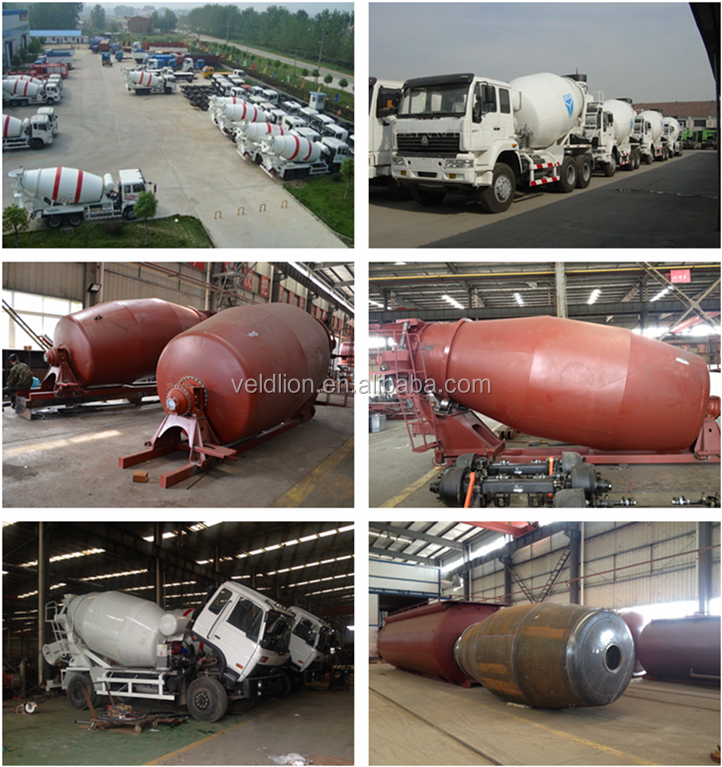

Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.


Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.






» IV.Company Introduce:


            Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is a big manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

           Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit a mount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.




» V.Packaging & Shipping

  • Thick wax polished on products before shipping to protect.
  • Use container, RORO/bulk ship or others as your requirement.
  • We provide transportation insurance to guarantee the new and great condition of products for customers



»VI.Contact us


Atten:Mrs.Elaine lee
Mobile:0086-15926229900
www.veldlion.com



  YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
