Quick Details

  • Condition: New
  • Storage: Oil
  • Drive Wheel: 4x2
  • Horsepower: < 150hp
  • Transmission Type: Manual
  • Fuel Type: Diesel
  • Tank Volume: 5001 - 10000L
  • Engine Capacity: 4500ml
  • Dimensions (L x W x H) (mm): 6995*2300*2650
  • Brand Name: Veldlion
  • Place of Origin: Hubei, China (Mainland)
  • Model Number: VL55070GJY
  • Gross Vehicle Weight: 7495
  • Name: fuel tanker truck
  • Brand: Foton/Dongfeng/sinotruk/Faw
  • Driving type: 4x2
  • Emission: Euro2 , Euro3 or Euro 4
  • Tank volume: 5m3/ 5000L/ 5 cubic meter
  • Tank material: Carbon Steel
  • Tire: 8.25-16,7.50-16,8.25R16,7.50R16
  • Color or logo: According to customer's request

Packaging & Delivery

Packaging Details Nude packing or ro-ro ship&bulk ship for fuel tanker truck
Delivery Time 25 working days
Product Description

 1. Technical parameters of the 5000 litres/5 cubic meter/5m3 fuel tanker truck .



Item

unit

parameter

Chassis model



BJ1062VDJEA

Overall dimensions

mm

5995*2000*2400



Fact cubage

L

5000

GVW

kg

7495

Mass in working order

3100

Body internal dimensions

mm

4100*1660*1110

Wheel base

3360

F/R track base

1470/1430

Approach/departure angle

°

30/17

Exhaust/hp

ml/KW

3857/83

Max speed

km/h

90

Tire specification

6.50-16

Engine type

4DX23-110E3F

Traction system

4×2

transmission

5-speed with over drive

Number of axles

2

Electric system

24v

Operation control system

Electrically hydraulic control

Allowable passengers in cab

3

Production cycle

7-10days

Warranty

12 month,from the date of supply

equipment description

1 can be equipped with refueling pump , flow meter, tanker aircraft, refueling reel

2 can be separated into several small unattached tanks

Special function description

1can load different oils , chemicals ,and food separately

2can be designed to pump in –out and downgrade flow measured by flow meter or not!

Tank features description

1Tank is made of carbon steel .the whole tank can be separated into several unattached parts . diaphragm is welded in the middle of tank to reduce the pressure during the transportation .



2Antirust paint is pained and container indicator is installed to show the capacity of the tank during the pump in or out



3In order to ensure the tank pressure and atmospheric pressure are basically the same during their working , breathing valve is installed in the covered pot CUHK .when the tank pressure is higher than the outside pressure 8KPa , the front breathing valve would open ; when the tank pressure is lower than the outside pressure 3KPa , the real breathing valve would open

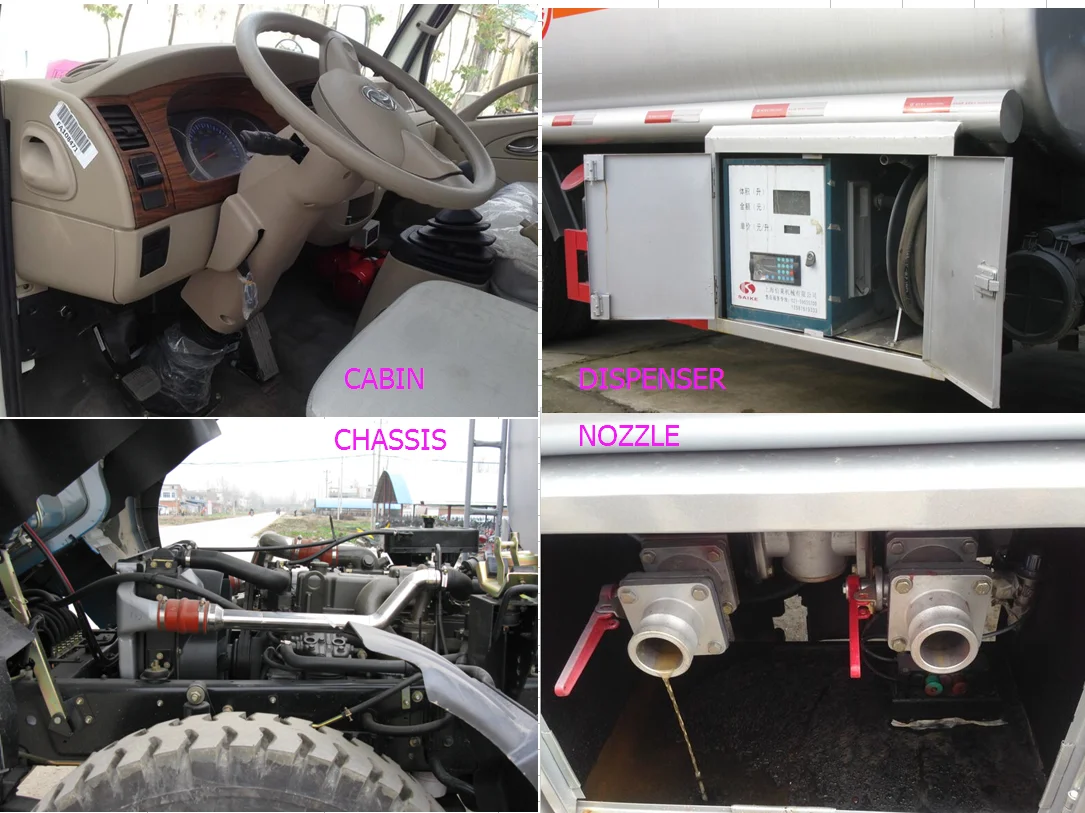

DETAIL IMAGES



Our fuel tank truck advantage:



(1). Factory direct supply, competitive price with advanced quality;



(2). Can offer various tanker truck, like as oil tanker ,bulk cement tanker truck, water tanker truck,mixer tanker truck, LPG...,



(3). Tanker volume: 5CBM-60CBM



(4). Chassis is optional, DFAC, FOTON, SINO, SHACAN,FAW,CAMC,I SUZU....



TRUCK WORKMANSHOP

There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.

Packaging & Shipping

1. RORO SHIP

The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.



2. BULK SHIP



Our Services

(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.



VELDLION SALES TEAM



Company Information



Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is a big manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit a mount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.



FAQ

Q: How can we trust your company?

A: We are registered in the Commercial Department of China, with the whole qualification for exporting. Certificates including ISO9001 can also be provided.  Pls refer to attached photo.

Q: Are you factory? Can you make according to our design?

A: Sure, Our factory has been built for more than 5 years. And we already built good relationship with Sinotruk, FAW, Dongfeng, Isuzu, Foton, Shacman chassis manufacturer. Can make the vehicles according to your request.



Q: What is your company payment?

A:We can accept various kinds of payment include T/T, L/C, Western Union , Money Gram, Paypal and etc.



Q: What is your products warrenty?

A: We can offer 1 year main parts (Engine, Axle, Gearbox) guarantee. What is more, We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.





Q: How to contact with you?

A:Atten: Coco. Tian

      Cellphone/whatsapp: 0086-17771878326

      Skype: alice03262010

      Email: wanda(at)veldlion.com

      www.veldlion.com
