8 cubic meters 8m3 8cbm HOWO Concrete Mixer Truck for sale, concrete mixer truck price

FOB Reference Price:Get Latest Price
US $41,500-55,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hubei, China (Mainland)
Brand Name:
veldlion
Model Number:
WS5257
Weight:
25000kg
Dimension(L*W*H):
9050X2496X3850
Power(W):
247
Certification:
ISO SGS BV
Warranty:
12
After-sales Service Provided:
Overseas service center available
Model:
8m3 concrete mixer truck for sale
Keywords:
Concrete Mixer Trick
Engine:
WD615.69
Driving type:
6x4 Driving Wheel LHD
Chassis brand:
SINOTRUK Howo Concrete Mixer Machine
Item:
Hydraulic Concrete Mixer
SupplyAbility
SupplyAbility:
100 Unit/Units per Year
Packaging & Delivery
Packaging Details
nude
Port
shanghai
Lead Time :
30 working ay
Product Description



Model Name

HOWO 6x4 Concrete Mixer Truck

 Driving Type

6×4,left /right hand drive

Tanker volume

8-12CBM

Max.speed(km/h)

90

Color

white

 Weights

 Payload

 8-12CBM

 Curb weight(kg)

13100

 Dimensions

 Wheelbase(mm)

 3625+1350

 Overall Dimension(mm)

 9040×2496×3850

Box dimension(mm)

××

 Front /Rear tread (mm)

 2022;1830/1830

Front/rear overhang(mm)

 1500/2240

 Approach/Depature angle(°)

 16/26

 Engine

 Engine model

 WD615.95E(336HP)

 Engine type

6 cylinder in line, water-cooled ,Inter-cooling engine

Displacement(L)

9.726

Max.Power(kW)

247

Rated power Rev(RPW)

2200

Maximum Torque(N*m)/Rev(r/min)

1350/1100-1600

Gear box

Brand

HW15710

Model

10 speed (10 forwards and 1 reverse),Manual operation

Cab

Model

Radio,air container and so on

Steering

ZF8098

Axles

Rear Axle(drive axle)-Model

HC16

Front Axle-Model

HF9

Tire specification

Tire specification

12.00-20 12.00R20 standard tire,10 tires+1 spare tire

Concrete mixer truck technology information(8-12CBM)

Mixer drum parameter

Tanker Material:16MnQ345

Filling speed (M3/min) ≥ 2.8

Unloading speed (M3/min)≥ 1.2

Discharge reside ratio( %)≤ 0.5

Mixer drum rotation speed(rpm) 0~12

Driving system

Reducer:Italy PMP

Hydraulic pump:Italy PMP

Hydraulic motor:;;ltaly PMP

Heat device:changzhou or wuxi(made in china)

Water supply system

Tank volume:400L

Air pressure water supply

Operating system

Model:linkage operation

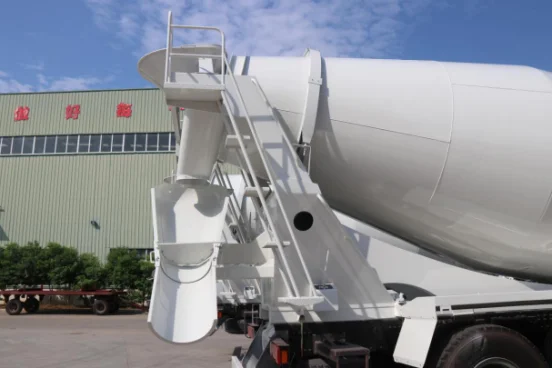

Truck Images

 8 cubic meters 8m3 8cbm HOWO Concrete Mixer Truck for sale, concrete mixer truck price.jpg





8 cubic meters 8m3 8cbm HOWO Concrete Mixer Truck for sale, concrete mixer truck price.jpg





Company Information



2. COMPANY INTRODUCE

HUBEI VELDLION MACHINERY CO., Ltd is an authorized special purpose trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Create value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

8 cubic meters 8m3 8cbm HOWO Concrete Mixer Truck for sale, concrete mixer truck price.jpg


3. VELDLION MAIN PRODUCTs
1. Dump Truck/Tipper Truck
2. Fire Fighting Truck
3. Truck amounted Crane
4. Semi-Trailer and Tractor Truck
5. Water Tank Truck/water bower truck
6. Fuel Tank Truck/fuel refulling truck
7. Concrete mixer truck
8. Fecal suction truck/ sewage suction truck
9. Light Cargo Truck/Mini Truck
10. High-altitude operation truck/cherry picker truck
11. Garbage Truck/Compactor Garbage Truck
12. Refrigretor truck
13. LPG Tanker/LPG tanker trailer/LPG skid station
14. LED Dislay Truck
15. Spare parts
 8 cubic meters 8m3 8cbm HOWO Concrete Mixer Truck for sale, concrete mixer truck price.jpg







OUR SERVICES
1. more than 300 professional worker to supply high quality products;
2. Own engineer to design according to your request;
3. QC team to control the all production line;
4. Sales team to follow on all details for you;
5. 24hours on line after sales service;



Packaging & Shipping


4. Packaging & Shipping for trucks
A. Packaging: Naked
B. Heavy trucks cound be shipped by RO-RO /Bulk vessel /Frame
C. Light trucks could be shipped 20ft /40ft container
8 cubic meters 8m3 8cbm HOWO Concrete Mixer Truck for sale, concrete mixer truck price.jpg
5. FAQ
1.Q:How about the warranty?
   A: 12months or 60,000km whichever comes first.
2.Q:How about the delivery time?
   A: It depends on the style of truck, normally  around 30 working days
3. Q:How about shipping ?
    A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container ,  small type can shipping by container, Pls contact us to get a shipping quotation .
4. Q: How do you control the quality of product?
    A: Our workers are well-trained, every truck under goes a scrutinizing inspection process.
5. Q: How about your product After-sales service system?
    A: Our main export countries have accepted after-sales service, some of country use the third department service.
6.Q: Do you accept Custom orders? What's is your MOQ order?
   A:Yes, we do, our MOQ is 1 set.
7.Q: What's the payment terms?
   A:By T/T or L/C at sight ,Western Union
