ASME standard 3 axle LPG tank trailer, 56000L LPG gas trailer

FOB Reference Price:Get Latest Price
US $35,000-45,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel, Steel,Made by high quality low carbon steel
Certification:
DOT
Size:
12900x2500x3380
OEM No.:
654985354
Max Payload:
25000
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Veldlion
Model Number:
VL9405
Painting:
Polyurethane painting
Service:
Provide
SupplyAbility
SupplyAbility:
1000 Unit/Units per Year
Packaging & Delivery
Packaging Details
NAKED
Port
shanghai
Lead Time :
25WORKING DAY

LPG(propane) pressure vessels/tanks, trailers, trucks

-----------------------------------------------------------------------

*   LPG (propane) tank semi-trailer *




Asme standard available

100% new condition by manufacturer direct sale

100% quality guaranteed

lpg semi trailer 2_

» I.Product Describution


Manufacturer: Hubei Veldlion Machinery Co.,Ltd.


  • Domestic or imported high-quality safety accessories is optional for lpg storage tank
  • We can provide LPG storage tank volume from 5m3 to 120m3
                            LPG semi trailer from 23.97m3 to 59.6m3
                            LPG transporation truck from 5.5m3 to 35.5m
  • We accept custom design to meet the conditions of many other gas transport, transport medium include liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas (lpg), dimethyl-ether, normal butane, isobutane, butene, isobutene, butadiene and ethylene oxide
  • According to strict manufacturing engineering to guarantee the lowest contractibility rate and highest dimensional stability
  • Strict quality testing:A and b class weld joint with 100 percent x-ray radiographic inspection grade ii qualified;C and d class weld joint with 100 percent magnaflux inspection class i qualified
  • Corrosion-resistant coating on the tanker surface.Using sand-blasting treatment, spraying, blowing and other advanced technology
  • Standard configuration:Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires and fenders.
  • Asme certificationWe are qualified to provide asme standard pressure vessel products, if customer needs



» II.LPG tank semi-trailer specification :

Semi-Trailer

Curb weight

16420kg

Max payload

23580kg

Max G.V.W

40000kg

Overall Dimensions(L×W×H)

12995x2500x3950mm

I Beam& Chassis

Heavy duty and extra durability designed I beam; Opting for high

tensile steel Q345B, welded by automatic Submerged-Arc processes.

Top Flange 16mm,width 140mm; Middle Flange 8mm,Height 500mm,

Bottom Flange 20mm,width 140mm.

Axle

13tons FUWA heavy duty axles

Suspension

Heavy duty mechanical suspension

Leaf Spring

Leaf spring

King Pin

JOST 2" Bolt-in King Pin

Landing Gear

Jost landing gear.

Tire

12R22.5(Tubless), Qty. 13.

Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks

Electric System

Gladhand, 24V-coupler, Rear lamp. Side lamp, 7-Pin coil wireless, Led light.

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.

Accessories

One standard tool box and other necessary devices

Tanker

Design Pressure

1.77Mpa

Design temperature

50 ºC

Filling medium

LPG

Tank material

Q345R

Tank mass

11745kg

Corrosion allowance

1.00mm

Tank capacity

56.14 m3

Hydraulic test pressure

2.66Mpa

Overall Dimensions(L×W×H)

DN2450x14x12796 mm

Emergency shutoff device

Nominal pressure

PN2.5Mpa

Nominal diameter

Gas phase

DN 25mm

Liquid phase

DN 50mm

Operation way

Hydraulic type

Closing time

≤10 Sec

Melting switch temperature

70±5ºC

Safety valve

Type

Inner full lift

Nominal pressure

PN2.5 MPa

Nominal diameter

DN80mm

Opening pressure

1.86~1.94 MPa

Closing pressure

1.49~1.55MPa

Complete opening pressure

<2.12 MPa

Gauge tank

Type

Rotary type

Nominal pressure

PN2.5Mpa

Surveying range

0~2400mm

precision

2.5 Grade

Handing Device

Model

Quick-tie-in

Nominal Diameter

Gas phase

DN 25mm

Liquid phase

DN 50mm

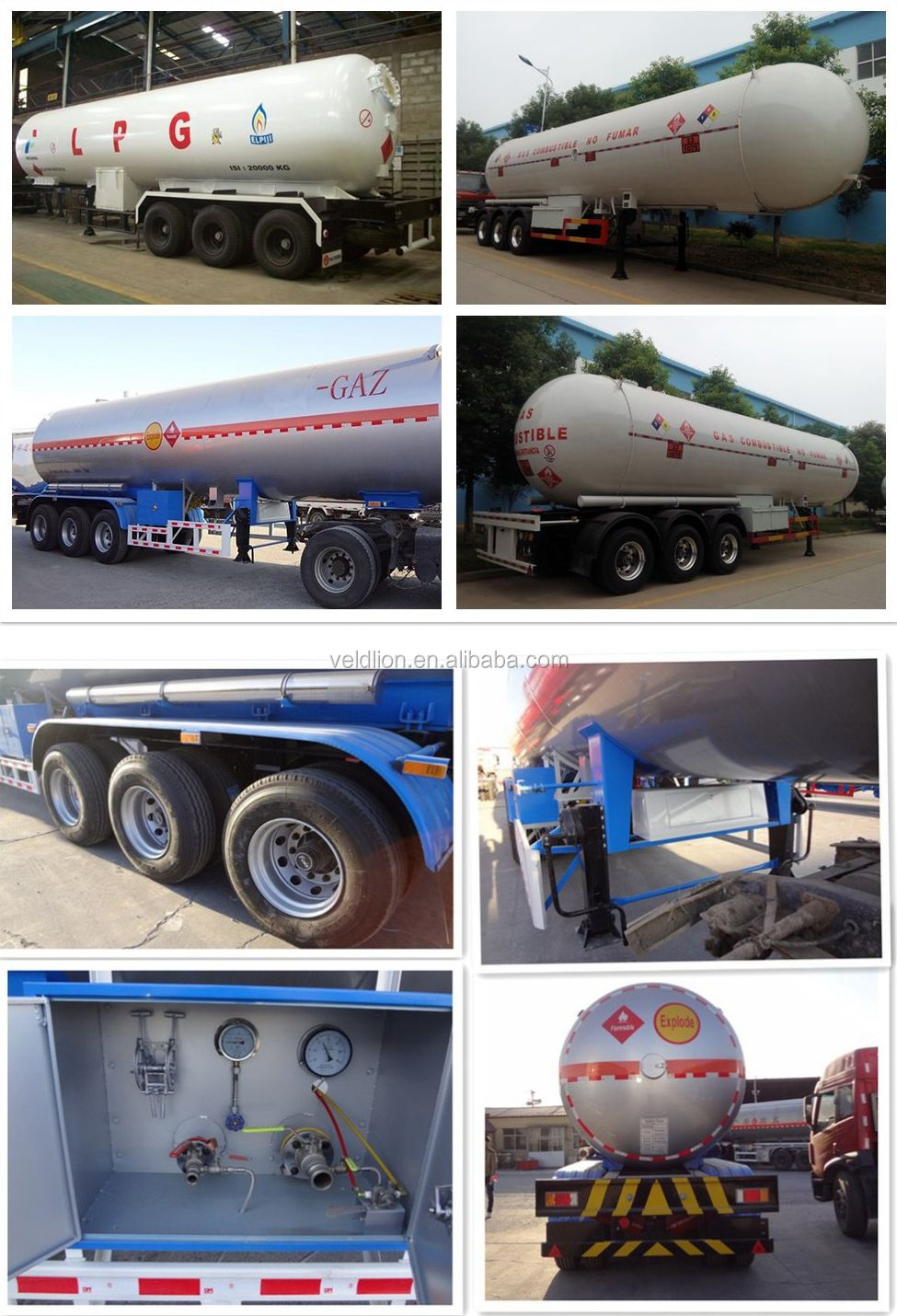

LPG SEMI-TRAILER DETAILS



» III.Our Advantages

Why choose us?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity


Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.


Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.





» IV.Company Introduce:



          Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is a big manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

           Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit a mount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.





» V.Packaging & Shipping

  • Thick wax polished on products before shipping to protect.
  • Use container, RORO/bulk ship or others as your requirement.
  • We provide transportation insurance to guarantee the new and great condition of products for customers
